Global Cache Network Controller Rackmount 2 Serial 3 Relay 6 Infrared

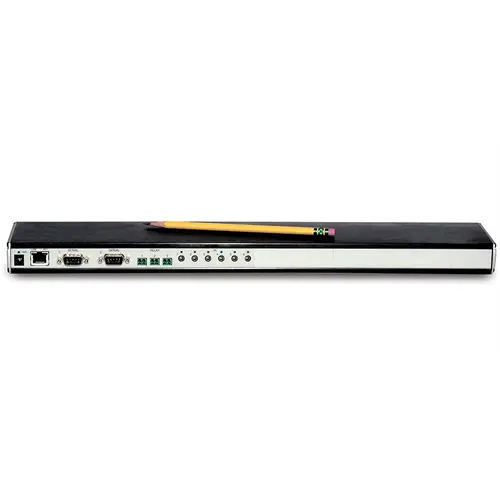

The Global Caché GC-100-18R is a rackmount device providing hard wired Ethernet control of  6 infrared emitter or input ports, 2 x RS-232 serial ports and 3 relays, for monitoring and control of AV and other equipment over a network and the Internet.  Based on open standards, the  GC-100 can easily be integrated in to a home automation system or controlled by PC or iPhone/iPod/iPad control applications.

Each infrared port can be configured individually as an IR output or a sensor input for sensing a DVD or video player’s video output, voltage sensing or contact closure sensing by adding the appropriate sensor devices.  Infrared input can be achieved by adding GC-IRE and GC-RG1

• Ethernet 10/100 wired connection
• 6 ports configurable as infrared outputs or sensor inputs
• 2 x RS-232 serial port
• 3 on board relays
• 6 Expansion slots
• Integrated web server
• iHelp software simplifies discovery and setup
• Supported by most automation software and hardware control systems
• Control4 certified
• Flash firmware upgradeable
• Dimensions: 12 x 3 x 1.3 Inches
• 1 year manufacturer’s warranty
