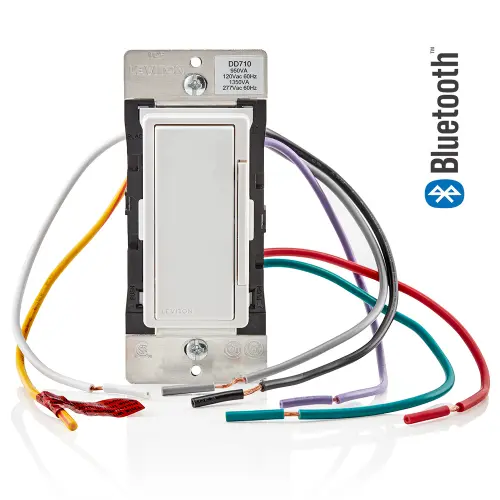

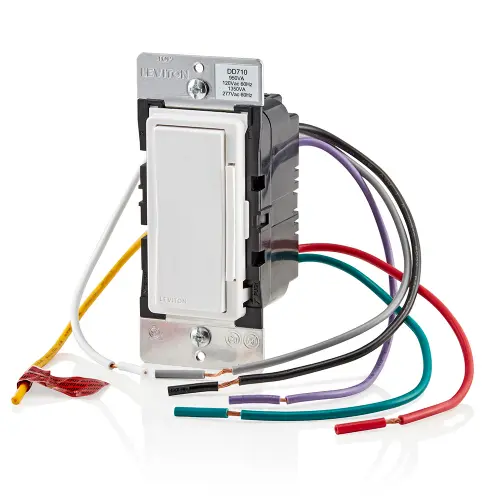

Leviton Decora Digital Dimmer for 0-10V, LED or Fluorescent, White

Decora Digital Preset 0-10V Dimmer for use with LED or Fluorescent Ballasts and Power Supplies, suitable for use with Class 1 or Class 2 wiring, 950VA @ 120VAC and 1350VA @ 277VAC Fluorescent, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with the DD00R companion dimmer – White, Ivory & Light Almond.

Decora Digital Dimmer Switch for 0-10V LED, Mark 7 Florescent Ballasts Features:

• Use only with appropriate LED 0-10V dimmable power supplies/drivers, Advance Transformer 120/277V Mark 7^® 0-10V ballasts or OSRAM Sylvania QUICKTRONIC^® or Helios^TM electronic ballasts
• Dual voltage 120V/277V; 50mAmps maximum sink current
• Digital circuitry provides programmable soft fade on and fade off
• Ability to set maximum light level for energy savings
• Customize the dimming range of LED bulb(s) using the minimal light level adjustment
• Control and program settings manually or using
• App uses simple, intuitive on-screen menu options and is compatible with Apple and Android smartphones or tablets
• Flexibility to program timed events weekdays, weekends or any combination of days at set or random
• Astronomical clock automatically adjusts to local sunrise/sunset
• Automatic daylight-saving time
• Countdown sleep timer can be set for up to 12
• LED locator light can be turned off via
• Dimmer brightness display can be turned off via
• Single pole or 3-way/multi-location control with Decora Digital companion dimmer (sold separately)
• No fins for multi-gang installation
• Built-in radio/TV interference filter

Decora Digital Dimmer Switch for 0-10V LED, Mark 7 Florescent Ballasts Specifications:

• Action: Soft-On, Fade-Off. Rocker Switch for ON/OFF, Dimmer bar for lighting level control
• Available Color Kits: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
• Color: White, Ivory, Light Almond
• LED Color: Green
• Light: LED Locator and Brightness Display
• Load Rating: 8A (120V) 950VA, 5A (277V) 1350VA
• Load Type: Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
• Ordering Notes: Included White, Ivory and Light Almond Color Kit
• Preset: Slide bar preserves desired lighting level
• Standards and Certifications: CSA, NOM, Bluetooth SIG, FCC
• Style Name: Decora
• Switch Type: Single-Pole, 3-Way or More Applications
• Timer Type: 24 Hour and Countdown
• Type: Dimmer
• Voltage: 120/277 VAC
• Wallplate: Order Separately
• Warranty: 5-Year Limited
• Wireless Connectivity: Bluetooth
• Wiring Notes: Neutral required
